Elevators 5

Featured image

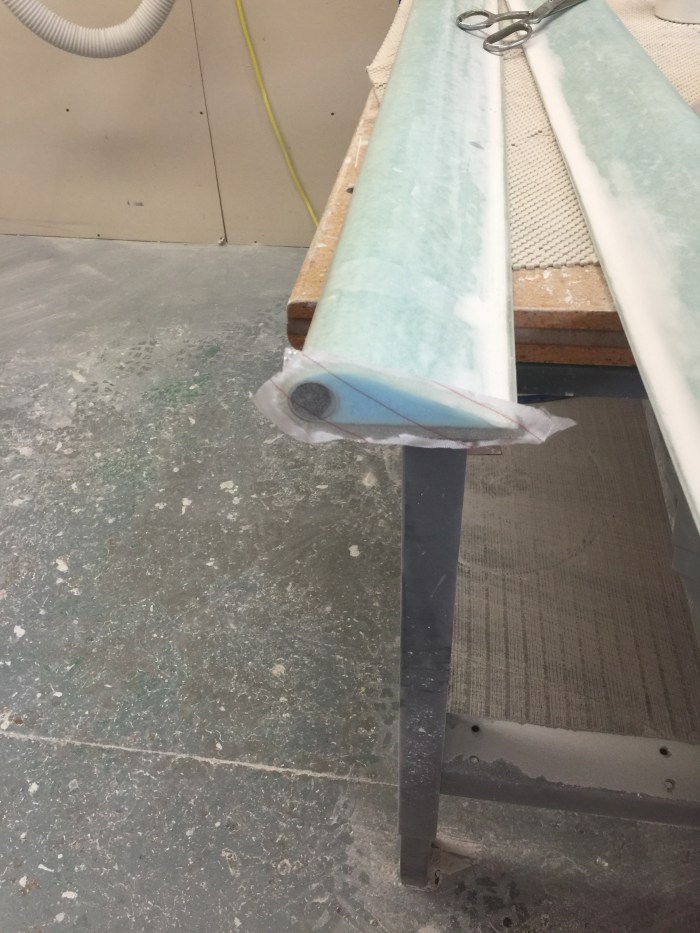

I closed out the outboard ends of the elevators. I relieved the core for a flox corner, applied flox and laid up one layer of bidirectional cloth.

Featured image

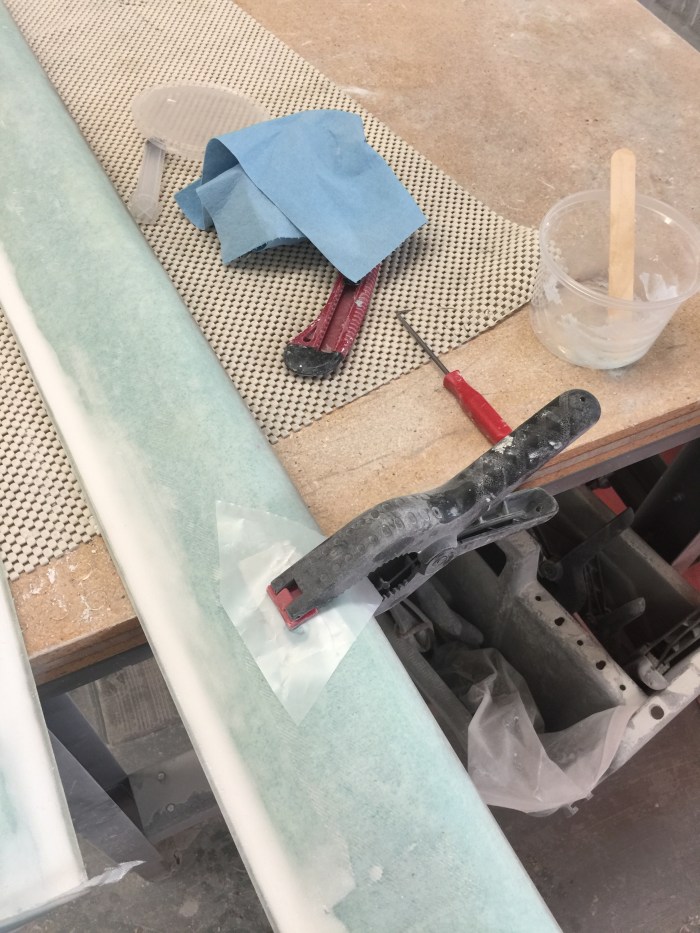

On one of the elevators I found a void. So I drilled two holes and injected in resin with a syringe.  I then used a clamp to apply pressure while it cures. I also applied micro on the elevators the same time that I was doing the canard.

, , , , , ,
