NG bulkheads

Featured image

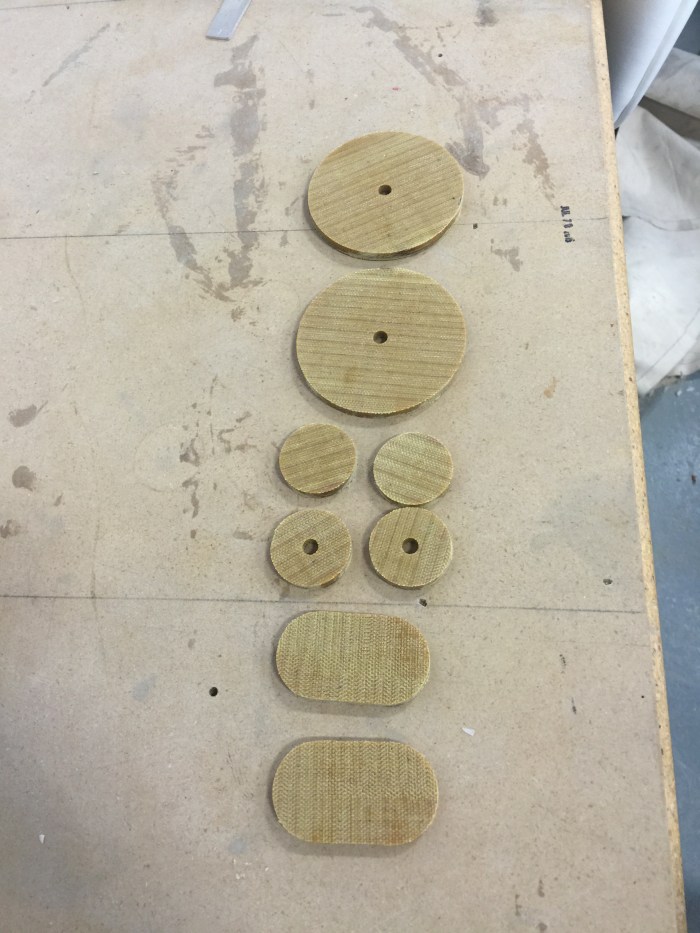

I decided to use phenolic hard points for the nose gear. The pieces that already have a hole cut in them will be used to locate the bulkheads on the router.

Featured image

The foam blanks were cnc cut on the router. I then vacuum bagged each side.

Featured image

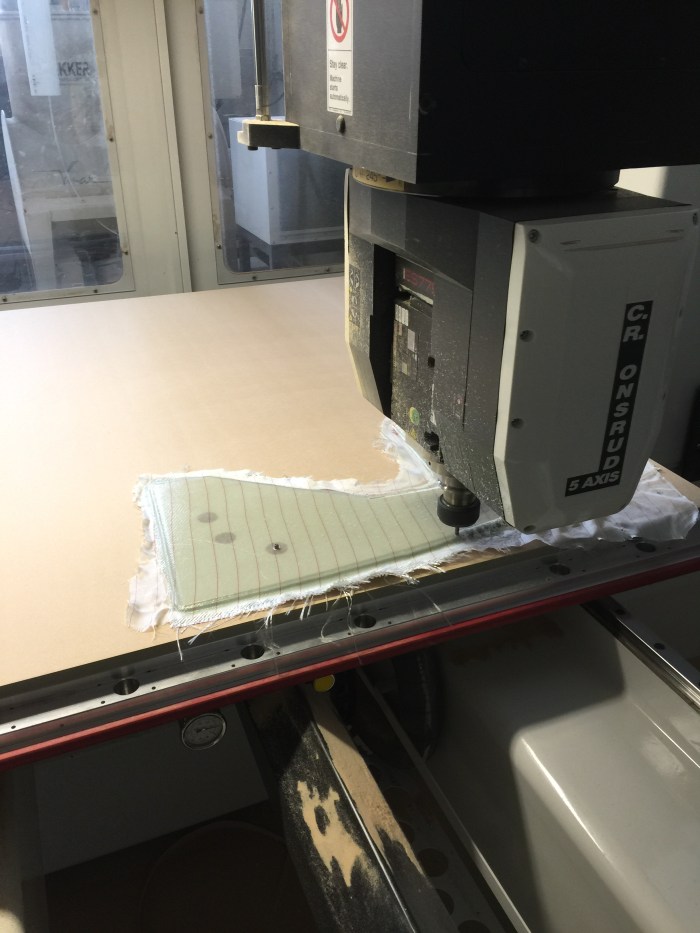

I used 1/4″ dowel pins to locate the bulkheads for the trimming.

Featured image

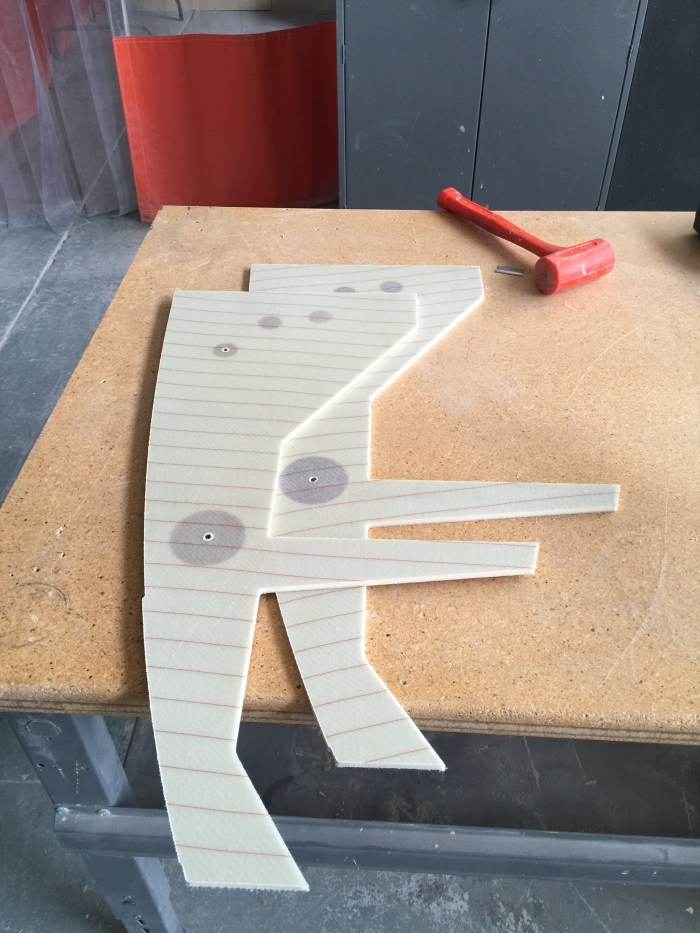

Here is the bulkheads finished trimmed.

Featured image

Hole is reamed for the nose gear pivot. I have one of the original NG6 but I am going to order a new version from http://www.eznoselift.com along with one of Jack Wilhelmson’s lift systems.

Featured image

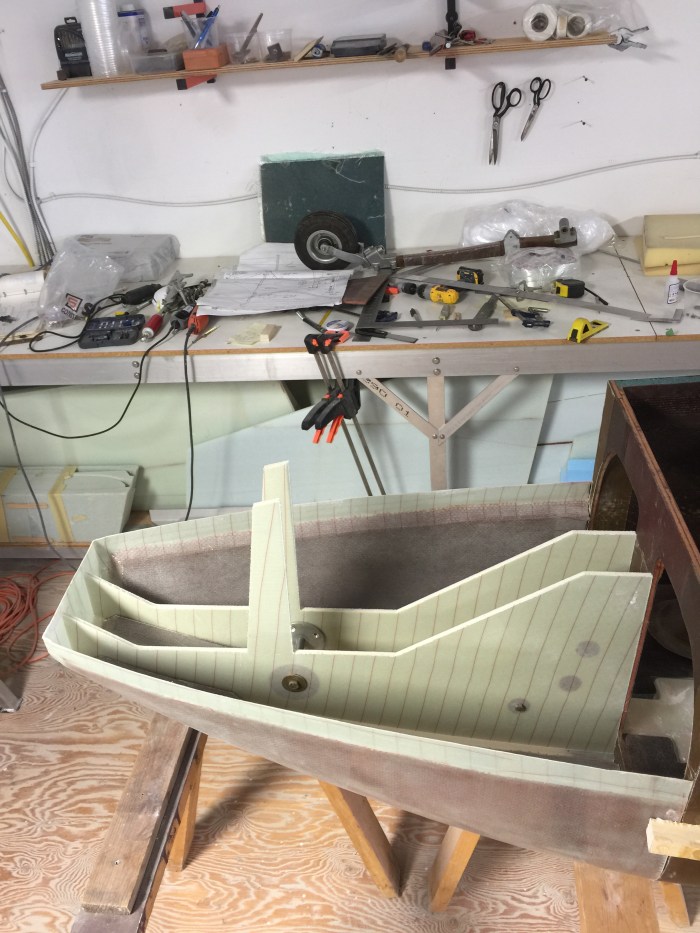

Oddly enough they fit right in place 🙂

, , , ,
